Garralube 615

  • Exceptional thermal and oxidation stability
  • Low carbon-forming tendency
  • Extended drain intervals
  • Reduced maintenance and downtime

Uses

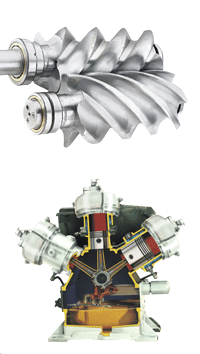

  • Air Compressors
  • Compressors
  • Vacuum Pumps
  • Refrigeration Compressors
  • Irrigation Systems

Packaging

20 Litres

GarraLube 615 Synthetic Compressor Oil

GarraLube 615 Synthetic Compressor Oils are formulated with the highest quality synthetic base fluids. They provide excellent thermal and oxidation stability, high viscosity index, high flash point, low pour point, and excellent hydrolytic stability.

GarraLube 615 Synthetic Compressor Oils fight rust, oxidation, and foaming, and have superior anti-wear properties. The results are superior lubricants for applications in most reciprocating, rotary vane and screw compressors.

GarraLube 615 Synthetic Compressor Oils have been used successfully in reciprocating and rotary screw compressors from Ingersoll-Rand, Quincy, Sullair, Atlas Copco and Gardner-Denver.

Oil Change

GarraLube 615 Synthetic Compressor Oil is recommended to be change every 10,000 hours for air compressors (vol 20+ litres).

Features

  • Exceptional thermal and oxidation stability
  • Low carbon-forming tendency
  • Extended drain intervals
  • Reduced maintenance and downtime

Technical Data

ISO Viscocity Grade 32 46
Viscocity @ 40C, cSt 32.4 46.0
Viscocity @ 100C, cSt 6.6 7.4
Viscocity @ 100F, SUS 165 237
Viscocity @ 210F, SUS 48.0 51.4
Viscocity Index 163 125
Flash Point, F 505 505
Pour Point, F -65 -65
API Gravity @ 60F 11.6 12.9
Density Lb/Gal 8.24 8.14
4 Ball Wear, mm 0.50 0.50
RBOT mins 1600+ 1600+






















Competitive Cross Reference :

Syncomp Mobil Rarus Anderol
32 824 495
46 825 496
68 826 497
100 827 500










Materials Safety Data Sheet

SECTION 1: PRODUCT AND COMPANY IDENTIFICATION

PRODUCT: GARRALUBE 615
PRODUCT DESCRIPTION: SYNTHETIC COMPRESSOR OIL
PRODUCT CODE: 615
INTENDED USE: HEAVY DUTY, LONG LASTING COMPRESSOR OIL

COMPANY IDENTIFICATION:
PT GAPURA RAYA
Jl. Bangka Raya No. 4, Pela Mampang
Jakarta 12720, Indonesia
Phone : (62-21) 7179 0740

SECTION 2: COMPOSITION / INFORMATION ON INGREDIENTS

COMPONENTCAS NUMBERTLV/PEL (mg/M3)WEIGHT %
Petroleum Oil64741-88-4 5(As Oil Mist)> 85
PROPRIETARY ADDITIVES  MIXTURE NE < 15

The specific chemical names and composition of the components not disclosed is confidential business information and is withheld as permitted by 29CFR 1910.1200 and various Right-to-Know laws.

SECTION 3: PHYSICAL AND CHEMICAL PROPERTIES

Typical physical and chemical properties are given below. Consult the Supplier in Section 1 for additional data.

GENERAL INFORMATION
Chemical Name: GARRALUBE 615 SYNTHETIC COMPRESSOR OIL
Form: Liquid
Odor: Slight petroleum odor
Specific Gravity (water = 1): 0.87
Melting Point: NE
Boiling Point: NE
Volatility, weight %at 25C: Negligible
Evaporation Rate: Negligible
Vapor Pressure, mmHg at 25C: < 1 mm
Solubility in Water Insoluble
Stability: Stable under normal conditions

SECTION 4: FIRE AND EXPLOSION DATA

Flashpoint (Cleveland Open Cup): 405F
Autoignition Temperature: NE
Flammable Limits: NE
Fire Extinguishing Agents: Water Spray (fog), dry chemical, foam, halon, or carbon dioxide. Water stream may splash burning liquid and spread fire.

Special Fire Fighting Procedures: As for petroleum products. Do not use direct or heavy water stream to fight fire. Use self-contained breathing apparatus to fight fires.

SECTION 5: FIRST AID

EYE CONTACT: Immediately flush with large quantities of cool water for at least 15 minutes. Get medical attention.
SKIN CONTACT: Wash off with soap and water.
INHALATION: Remove to fresh air. If not breathing, give artificial respiration. Get medical attention.
INGESTION: Do NOT induce vomiting. Get medical attention.
Notes to Physician: High pressure injection under the skin may have serious consequences and may require urgent treatment.

SECTION 6: REACTIVITY

Reactivity: Stable under normal temperatures and pressures.
Incompatibilities: Strong oxidizing agents, heat, open flame.
Hazardous Polymerization: Des not occur.
Hazardous Decomposition Products: CO2, CO

SECTION 7: SPECIAL PROTECTION INFORMATION

Ventilation (Local, Mechanical, Special): Use in a well ventilated area with local exhaust ventilation.
Respiratory Protection: None required in normal use. Use only NIOSH/MSHA Organic vapor approved equipment if necessary.
Gloves: Not required in normal use.
Eye Protection: Goggles or safety glasses are recommended.
Other Protective Equipment: Practice good personal hygiene. Wash hands after use and handling.

SECTION 8: ENVIRONMENTAL PROCEDURES

Spills or Leaks:
Contain any spills with absorbents to prevent migrations and entry into sewers or streams. Take up small spills with dry chemical absorbent. Large spills may be taken up with pump or vacuum and finished off with dry chemical absorbent. May require excavation of contaminated soil.

Waste Disposal:
To the best of Gapura Raya knowledge this product is not regulated by CERCLA/RCRA as a hazardous waste or material. However, this product has not been tested for the toxicity characteristic via the Toxicity Characteristic Leaching Procedure. Therefore, it may be disposed of as an industrial waste in a manner acceptable to good waste management practice and in compliance wit applicable local, state, and federal regulations.

Right-to-Know: None

TSCA: This material is in compliance with the Toxic Substances Control Act (15USC2601-2629)

SECTION 9: STORAGE AND HANDLING

Keep containers sealed until ready for use. Avoid excessive long-term storage temperatures to prolong shelf life. Maximum storage temperature: 120F. Store in well ventilated areas.

SECTION 10: TRANSPORT INFORMATION

D.O.T. Shipping Name: Not Regulated
D.O.T. I.D. Number: NA
Reportable Quantity: NA
Freight Classification: NA
UN Hazard Class: NA
Special Transportation Notes: None
Notes:
NA = Not Applicable NE = Not Established

SECTION 11: OTHER INFORMATION

NE = Not Established, ND = Not Determined, NA = Not Applicable

THIS SAFETY DATA SHEET CONTAINS THE FOLLOWING REVISIONS:
No Revision information is available.

Revision Date: August 5th, 2010

Supercedes: Any previous versions

Prepared by: Robert Darmago

PT GAPURA RAYA. believes that the information and recommendations contained herein (including data and statements) are accurate as of the date hereof.
No warranty of fitness, warranty of merchantability or any other warranty, expressed or implied, is made concerning the information provided herein.
The information provided herein relates only to the specific product designated and may not be valid where such product is used in combination with any other materials or process.
Further, since the conditions and methods of use of this product and of the information referred to herein are beyond the control of PT GAPURA RAYA.
PT GAPURA RAYA. expressly disclaims any and all liability as to any results obtained or arising from any use of the product or reliance on such information.
