Garralube 613
- Outstanding oxidation resistance
- Reduces sludge, varnish and carbon deposits
Uses

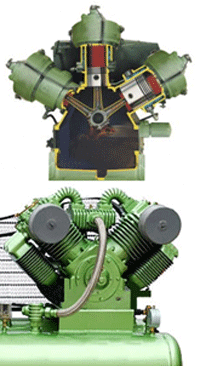

- Air Compressors
- Compressors
- Vacuum Pumps
|
GarraLube 613 Compressor Oils are high quality rust and oxidation (R&O) inhibited oils providing excellent performance in air compressors and other applications where high quality R&O type oil is required.
GarraLube 613 Compressor Oils feature outstanding oxidation resistance which enables extended oil drain intervals, with significantly reduced sludge, varnish and carbon deposits on exhaust valves and other compressor components, considerably reducing the necessity of valve cleaning and other maintenance, as well as increasing productivity.
GarraLube 613 Compressor Oils are also recommended for use in other applications which require a long life premium quality lubricant such as in turbines, pumps, machine tools, gear drives calling for a non-EP (zinc free) oil, circulating oil systems, oil mist systems, etc.
Oil Change
GarraLube 613 Compressor Oils is recommended to be changed every 3,000 hours for air compressors (vol 3 - 4 litres). Features
- Outstanding oxidation resistance
- Reduces sludge, varnish and carbon deposits
Technical Data
| ISO Grade |
32 |
46 |
68 |
100 |
| Viscocity @ 40C, cSt |
31 |
45 |
66 |
101 |
| Viscocity @ 100C, cSt |
5.2 |
6.6 |
8.4 |
10.8 |
| Viscocity @ 100F, SUS |
160 |
240 |
342 |
512 |
| Viscocity @ 210F, SUS |
44 |
48 |
55 |
63 |
| Viscocity Index |
97 |
97 |
97 |
95 |
| Flash Point, F |
400 |
425 |
445 |
470 |
| Pour Point, F |
-27 |
-22 |
-22 |
-11 |
| Color ASTM |
1.5 |
2.0 |
2.0 |
3.0 |
| TOST Hours |
10,000 |
10,000 |
10,000 |
10,000 |
Materials Safety Data Sheet
SECTION 1: PRODUCT AND COMPANY IDENTIFICATION
PRODUCT: GARRALUBE 613
PRODUCT DESCRIPTION: Compressor Oils
PRODUCT CODE: 613
INTENDED USE: Hydraulic Oil Lubricant
COMPANY IDENTIFICATION:
PT GAPURA RAYA
Jl. Bangka Raya No. 4, Pela Mampang
Jakarta 12720, Indonesia
Phone : (62-21) 7179 0740
|
|
SECTION 2: COMPOSITION / INFORMATION ON INGREDIENTS
| COMPONENT | CAS NUMBER | TLV/PEL (mg/M3) | WEIGHT % |
| PETROLEUM OIL | 64741-88-4 | 5(As Oil Mist) | > 85 |
| Proprietary Additives | Mixture | NE | < 5 |
The specific chemical names and composition of the components not disclosed is confidential business information and is withheld as permitted by 29CFR 1910.1200 and various Right-to-Know laws.
SECTION 3: PHYSICAL AND CHEMICAL PROPERTIES
| COMPONENT | CAS NUMBER |
| Chemical Name: | GARRALUBE 613 COMPRESSOR OILS |
| Form: | Liquid |
| Odor: | Slight Petroleum odor |
| Specific Gravity (water = 1): | 0.87 |
| Melting Point: | NE |
| Volatility, weight %at 25C: | Negligible |
| Evaporation Rate: | Negligible |
| Vapor Pressure, mmHg at 25C: | < 1 mm |
| Solubility in Water | Insoluble |
| Stability: | Stable under normal conditions |
SECTION 4: FIRE AND EXPLOSION DATA
Chemical Name: GARRALUBE 613 COMPRESSOR OILS
Form: Liquid
Odor: Slight petroleum odor
Specific Gravity (water = 1): 0.87
Melting Point: NE
Boiling Point: NE
Volatility, weight %at 25C: Negligible
Evaporation Rate: Negligible
Vapor Pressure, mmHg at 25C: < 1 mm
Solubility in Water Insoluble
Stability: Stable under normal conditions
SECTION 5: FIRST AID
Contact with EYES: Immediately flush with large quantities of cool water for at least 15 minutes. Get medical attention.
Contact with SKIN: Wash off with soap and water.
Inhalation: Remove to fresh air. If not breathing, give artificial respiration. Get medical attention.
Ingestion: Do NOT induce vomiting. Get medical attention.
SECTION 6: FIRST AID MEASURES
Reactivity: Stable under normal temperatures and pressures.
Incompatibilities: Strong oxidizing agents, heat, open flame.
Hazardous Polymerization: Des not occur.
Incompatibilities: Strong oxidizing agents, heat, open flame.
SECTION 7: SPECIAL PROTECTION INFORMATION
Ventilation (Local, Mechanical, Special): Use in a well ventilated area with local exhaust ventilation.
Respiratory Protection: None required in normal use. Use only NIOSH/MSHA Organic vapor approved equipment if necessary.
Gloves: Not required in normal use.
Eye Protection: Goggles or safety glasses are recommended.
Other Protective Equipment: Practice good personal hygiene. Wash hands after use and handling.
SECTION 8: ENVIRONMENTAL PROCEDURES
Spills or Leaks:
Contain any spills with absorbents to prevent migrations and entry into sewers or streams. Take up small spills with dry chemical absorbent. Large spills may be taken up with pump or vacuum and finished off with dry chemical absorbent. May require excavation of contaminated soil.
Waste Disposal:
To the best of Gapura Raya knowledge this product is not regulated by CERCLA/RCRA as a hazardous waste or material. However, this product has not been tested for the toxicity characteristic via the Toxicity Characteristic Leaching Procedure. Therefore, it may be disposed of as an industrial waste in a manner acceptable to good waste management practice and in compliance wit applicable local, state, and federal regulations.
Right-to-Know:
None
TSCA: This material is in compliance with the Toxic Substances Control Act (15USC2601-2629)
SECTION 9: STORAGE AND HANDLING
Keep containers sealed until ready for use. Avoid excessive long-term storage temperatures to prolong shelf life. Maximum storage temperature: 120F. Store in well ventilated areas.
SECTION 10: TRANSPORT
D.O.T. Shipping Name: Not Regulated
D.O.T. I.D. Number: NA
Reportable Quantity: NA
Freight Classification: NA
UN Hazard Class: NA
Special Transportation Notes: None
Notes:
NA = Not Applicable NE = Not Established
NE = Not Established, ND = Not Determined, NA = Not Applicable
THIS SAFETY DATA SHEET CONTAINS THE FOLLOWING REVISIONS:
No Revision information is available.
Revision Date: July 22nd, 2010
Supercedes: Any previous versions
Prepared by: Robert Darmago
PT GAPURA RAYA. believes that the information and recommendations contained herein (including data and statements) are accurate as of the date hereof.
No warranty of fitness, warranty of merchantability or any other warranty, expressed or implied, is made concerning the information provided herein.
The information provided herein relates only to the specific product designated and may not be valid where such product is used in combination with any other materials or process.
Further, since the conditions and methods of use of this product and of the information referred to herein are beyond the control of PT GAPURA RAYA.
PT GAPURA RAYA. expressly disclaims any and all liability as to any results obtained or arising from any use of the product or reliance on such information.
|
|
|
|
